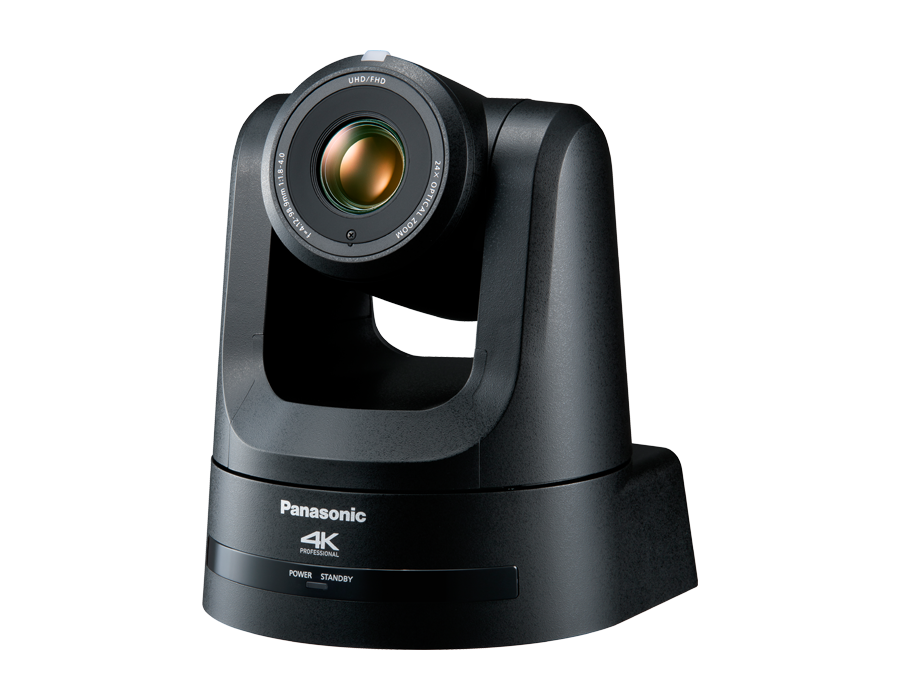

Camera PTZ Panasonic AW-UE100W/K 4K (White/Black) - Ảnh 2

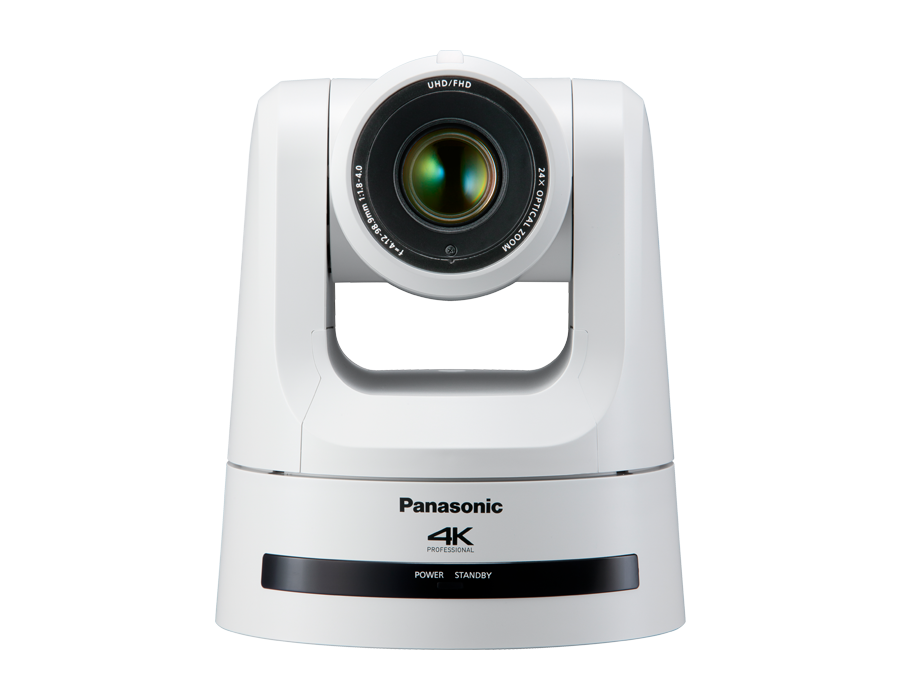

Camera PTZ Panasonic AW-UE100W/K 4K (White/Black) - Ảnh 3

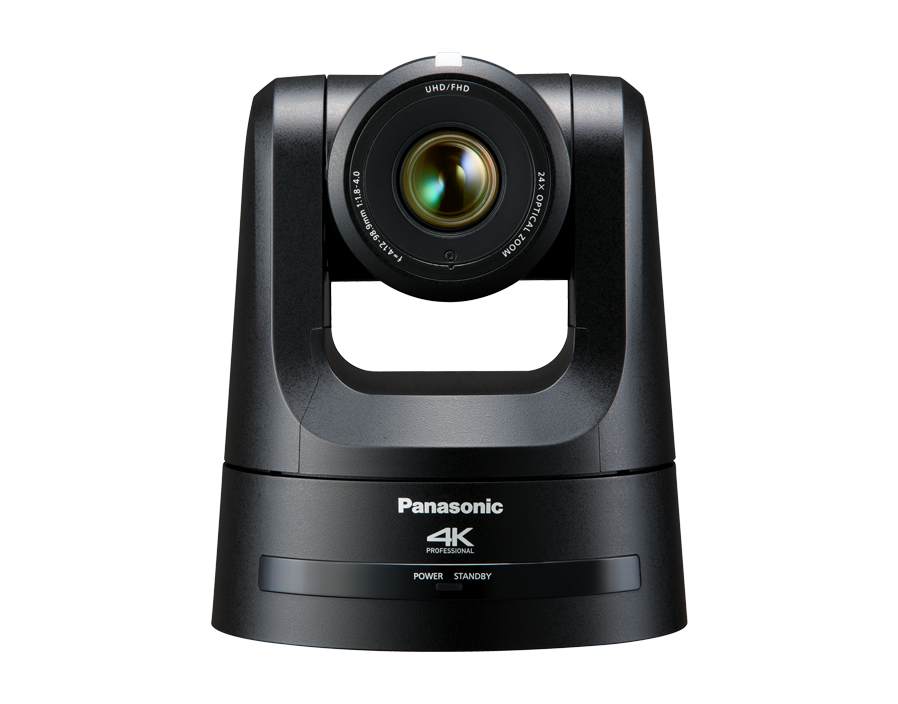

Camera PTZ Panasonic AW-UE100W/K 4K (White/Black) - Ảnh 4

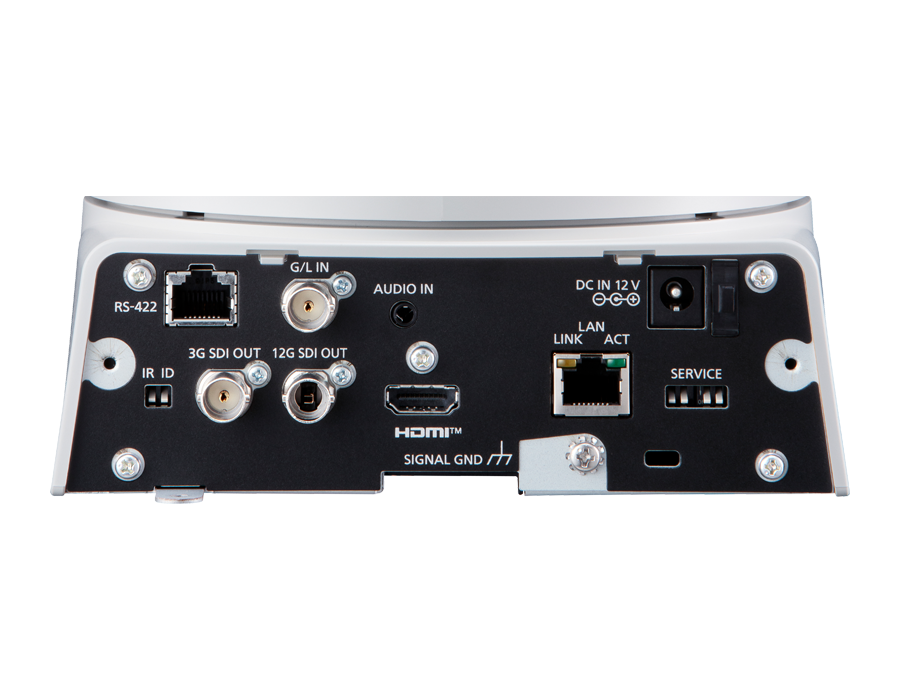

Camera PTZ Panasonic AW-UE100W/K 4K (White/Black) - Ảnh 5

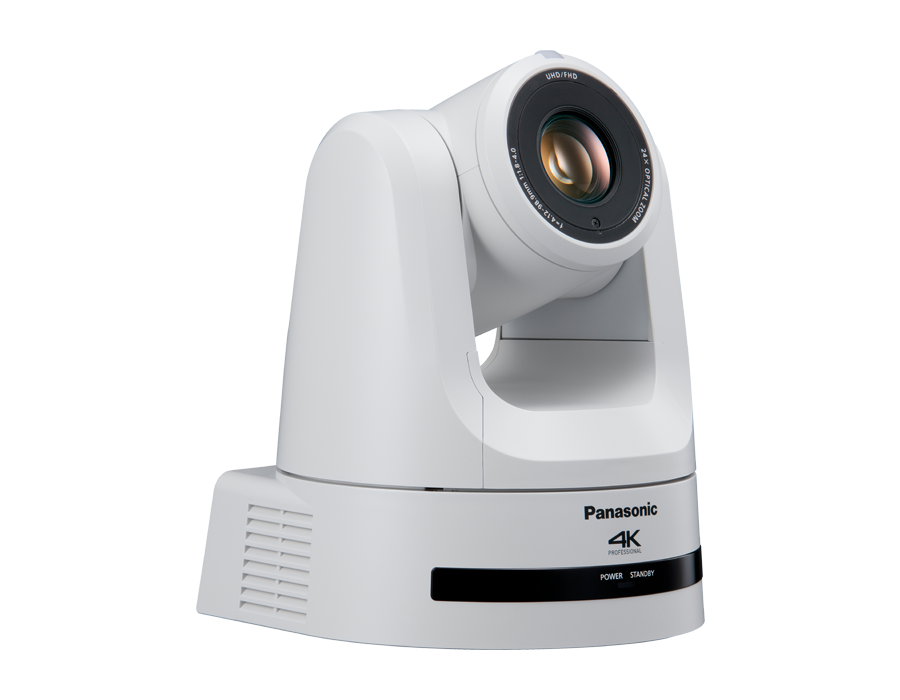

Camera PTZ Panasonic AW-UE100W/K 4K (White/Black) - Ảnh 6

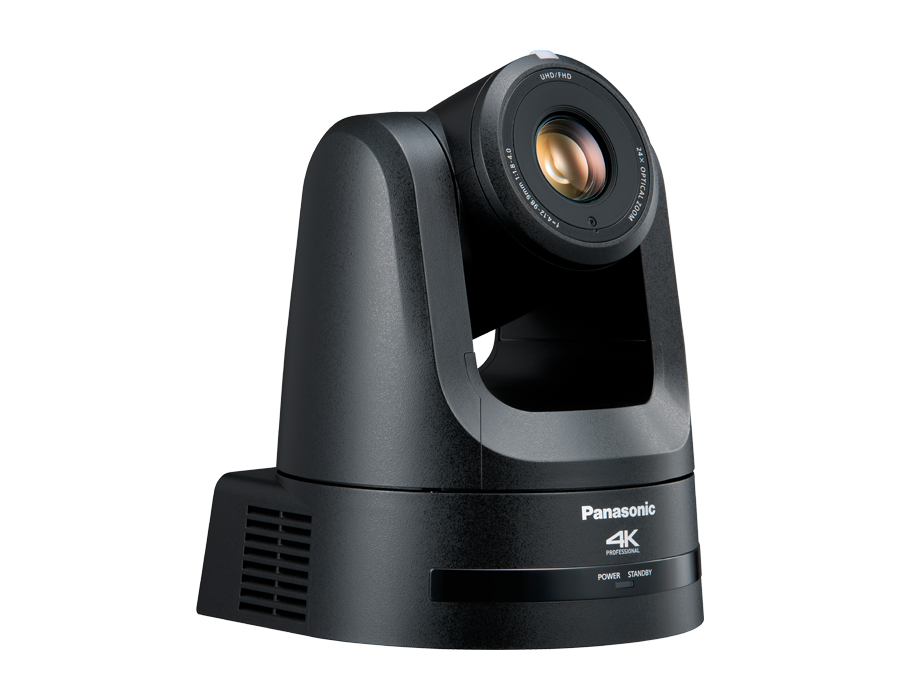

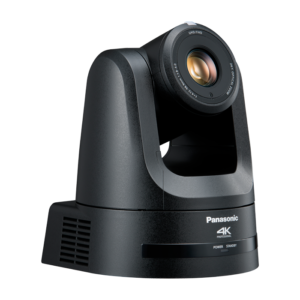

Camera PTZ Panasonic AW-UE100W/K 4K (White/Black) - Ảnh 7

Camera PTZ Panasonic AW-UE100W/K 4K (White/Black)

Khả năng quay hình chất lượng cao chuẩn 4K với tốc độ 60p/50p.
Độ phân giải đầu ra 4K 3840 x 2160 kết hợp tốc độ 59.94p/50p giúp video cực kỳ mượt mà.
Đáp ứng hoàn hảo cho các môi trường chuyển động nhanh như phát sóng trực tiếp thể thao.
Các định dạng đầu ra chuẩn 4K (qua cổng 12G-SDI / HDMI): 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p.
Các định dạng đầu ra chuẩn HD (qua cổng 3G-SDI / HDMI): 1080/59.94p, 1080/50p, 1080/29.97p, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/23.98p, 1080/24p, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p.

Danh mục: Máy quay, PTZ Cameras Thương hiệu: Panasonic

Mô tả
Đánh giá (0)

THÔNG SỐ KỸ THUẬT

General
Power Requirements	12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor), 42 V to 57 V DC (PoE++ power supply)
PoE++	IEEE802.3bt standard: DC 42 V to 57 V (Software authentication (LLDP) is supported)
Current Consumption	3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
Ambient Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Allowable Humidity Ranges	20 % to 90 % (no condensation)
Storage Temperature	–20 °C to 50 °C (–4 °F to 122 °F)
Mass	Approx. 2.2 kg (4.84 lb) (excluding cable cover, mount bracket) Approx. 2.3 kg (5.06 lb) (including cable cover, excluding mount bracket)
Dimensions (W x H x D)	169.2 mm x 204.6 mm x 170.6 mm (6-21/32 inches x 8-1/16 inches x 6-23/32 inches) (excluding protrusions, cable cover, mount bracket)
Finish	AW‑UE100WP/AW‑UE100WPC/AW‑UE100WE/AW‑UE100WED: Pearl white AW‑UE100KP/AW‑UE100KPC/AW‑UE100KE/AW‑UE100KED: Black
Controller Supported	AW-RP150, AW-RP60, AK-HRP1010GJ, AK-HRP1015GJ (Not available in some areas), AK-HRP250GJ
Camera Unit
Imaging Sensors	1/2.5-type 4K MOS x 1
Effective Pixels	Approx. 8,490,000 pixels
Lens	Motorized Optical 24x zoom, F1.8 to F4.0 [f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches); 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
Zoom	• Optical zoom: 24x • i.Zoom: UHD 28x, FHD 36x • Digital zoom: 1.4x, 2x
Conversion Lens	Not supported
Angle of View Range	Horizontal angle of view: 74.1° (wide) to 3.3° (tele) Vertical angle of view: 46.0° (wide) to 1.9° (tele) Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Optical Filter	Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Focus	Switching between auto and manual
Focus Distance	Entire zooming range: 1200 mm (3.9 ft) Wide end: 100 mm (0.33 ft)
Color Separation Optical System	1MOS
Standard Sensitivity	F4, 2000 lx (When normal mode is selected) F5.6, 2000 lx (When High Sens mode is selected)
Minimum Illumination	3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N	60dB(typ) (When [Shooting Mode] is [Normal])
Horizontal Resolution	1500 TV lines Typ (Center area)
Gain Selection	Auto, 0 dB to 36 dB*¹ Super Gain function equipped : 37 dB to 42 dB
Frame Mix*²	Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Electronic Shutter Speed	59.94p/59.94i	1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
	29.97p	1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
	23.98p/24p	1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
	50p/50i	1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
	25p	1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan	59.94p/59.94i	60.00 Hz to 7200 Hz
	29.97p	30.00 Hz to 7200 Hz
	23.98p/24p	24.00 Hz to 7200 Hz
	50p/50i	50.00 Hz to 7200 Hz
	25p	25.00 Hz to 7200 Hz
Gamma	HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3
White Balance	ATW : 3200K, 5600K AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability	OFF, –99 % to 99 %
Scene File	Scene1, Scene2, Scene3, Scene4
Output Format	SDI Output: 4K	2160/59.94p, 2160/50p, 2160/29.97p³, 2160/25p³, 2160/24p³, 2160/23.98p³
	SDI Output: HD	1080/59.94p, 1080/50p, 1080/29.97p³, 1080/29.97PsF, 1080/25p³, 1080/25PsF, 1080/23.98p⁴, 1080/24p³, 1080/23.98p*³, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
	HDMI Output: 4K	2160/59.94p, 2160/50p, 2160/29.97p³, 2160/25p³, 2160/24p³, 2160/23.98p³
	HDMI Output: HD	1080/59.94p, 1080/50p, 1080/29.97p³, 1080/25p³, 1080/23.98p¹⁰, 1080/24p³, 1080/23.98p*³, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Synchronization System
	Internal/External synchronization (BBS/Tri-level sync)

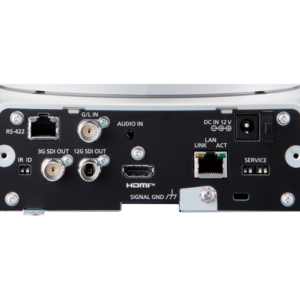

Input
Input Connector	DC 12 V IN, G/L IN	BBS (Black Burst Sync), tri-level sync supported 75 Ω terminal (BNCx1)
Input Connector	MIC/LINE input	Compatible (SDI/HDMI/IP) AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Input level: –40 dBV (0 dB=1 V/Pa, 1 kHz) Plug-in power compatible, supply voltage: 2.5 V ± 0.5 V • During LINE input Input level: –10 dBV • Input volume variable range: –36 dB to 12 dB (3 dB step) • Embedded audio output level: –12 dBFS • Sampling frequency: 48 kHz • Quantization bit rate: 24bit (SDI, HDMI), 16bit (IP)
Output
Video Output	HDMI	HDMI 2.0 connector 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported.
	12G-SDI OUT	SMPTE 2082-1, SMPTE424M/SMPTE292M / 75 Ω (BNC x 1) • Level-A/Level-B supported
	3G-SDI OUT	SMPTE424M/SMPTE292M / 75 Ω (BNC x 1) • Level-A/Level-B supported
Input/Output
Input/Output Connector	LAN	LAN terminal for IP control and video transmission (RJ‑45) 100BASE-TX/1000BASE-T PoE++ power terminal (IEEE802.3bt compliant)
Input/Output Connector	RS-422	CONTROL IN RS-422A (RJ‑45)
Pan-tilt Head Unit
Camera/Pan-tilt Head Control	IP connecting cable	LAN cable*⁵:(category 5e or above, straight cable), max. 100 m (328 ft)
Camera/Pan-tilt Head Control	AW protocol connecting cable	LAN cable*⁵:(category 5e or above, straight cable), max. 1000 m (3280 ft)
Installation Method	Stand-alone (Desktop) or suspended (Hanging)*⁶
Pan/tilt Operation Speed	Speed range: 0.08°/s to 60°/s (Normal mode) • 3 speed modes installed Normal: 60°/s, Fast1: 90°/s⁷, Fast2: 180°/s⁷
Panning Range	±175°
Tilting range	–30° to 210°*⁸
Quietness	NC25 or less
Supported Operating Systems and Web Browsers*⁹
Supported Operating Systems and Web Browsers	Windows	Microsoft^® Windows^® 10 Microsoft Edge Google Chrome
	Mac	MacOS 10.13/Safari 13, MacOS 10.14/Safari 13 MacOS 10.15/Safari 13, MacOS 10.15/Google Chrome
	iPhone / iPad	iOS Safari iPadOS
	Android	Android OS Google Chrome
IP Streaming
Image Streaming Mode	JPEG (MJPEG), H.264, H.265, NDI^® High Bandwidth, NDI^® HX2*
Image Resolution	3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Image Transmission Setting (JPEG)	Frame Rate: Maximum 30 fps Image quality (Fine / Normal)
Image Transmission Setting (H.264)	Transmission Type	Unicast port (AUTO) Unicast port (MANUAL) Multicast port
	Transmission Priority	Constant bit rate Frame rate Best effort
	Frame Rate	[60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
	Max Bit Rate	512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbps
Image Transmission Setting (H.265)	Transmission Type	Unicast port (AUTO) Unicast port (MANUAL) Multicast port
	Frame Rate	[60Hz] 30fps [50Hz] 25fps
	Max Bit Rate	8192kbps / 12288kbps / 25600kbps / 51200kbps / 76800kbps
Audio Compression Type	AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol	IPv6	TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT, SNMP, MPEG2-TS over UDP
Supported Protocol	IPv4	TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, SNMP, MPEG2-TS over UDP
Other Function
NDI^® support	NDI^® HX2: Included as standard NDI^® High Bandwidth: Included as standard
Tally LED Display Color	red / green
