Bộ kéo tín hiệu USB-C 4K60 4:4:4 & USB 2.0 TAV-USBKIT2

Tín hiệu video 4K60 (4:4:4 8bit) và USB 2.0 lên đến 130 feet / 40 mét

Tín hiệu video 4K30 (4:4:4 8bit) và USB 2.0 lên đến 230 feet / 70 mét

Truyền qua dữ liệu hình ảnh dải tương phản động cao (HDR pass-through)

Cổng USB-C PD 100W để sạc thiết bị

Cấp nguồn qua cáp (PoC) giúp đơn giản hóa việc lắp đặt

Điều khiển qua API để tích hợp hệ thống nâng cao

Khả năng tương thích cắm là chạy với sự hỗ trợ thiết bị phổ quát

Độ trễ cực thấp dưới mức khung hình (subframe latency) qua một sợi cáp mạng single CAT

Truyền qua tín hiệu âm thanh (Audio pass-through)

THÔNG SỐ KỸ THUẬT

Technical

HDMI

HDMI 2.0b

HDCP

HDCP 2.3

USB

USB 2.0

Video Bandwidth

18Gbps

Video Resolution

Up to 4K@60Hz (4:4:4 8bit)

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Color Depth

8/10/12bit

HDR

HDR, HDR10, HDR10+, Dolby Vision, HLG

Audio Formats

USB-C/HDMI passthrough:

LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD

Master Audio and DTS:X

Transmission Distance

Extend 4K60Hz (4:4:4 8bit) signal up to 130ft/40m

4K30Hz (4:4:4 8bit) signal up to 230ft/70m with CAT6A/7 cable

USB 2.0 pass through up to 230ft/70m, connecting to 4 USB

devices to the receiver

ESD Protection

IEC 61000-4-2:

±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

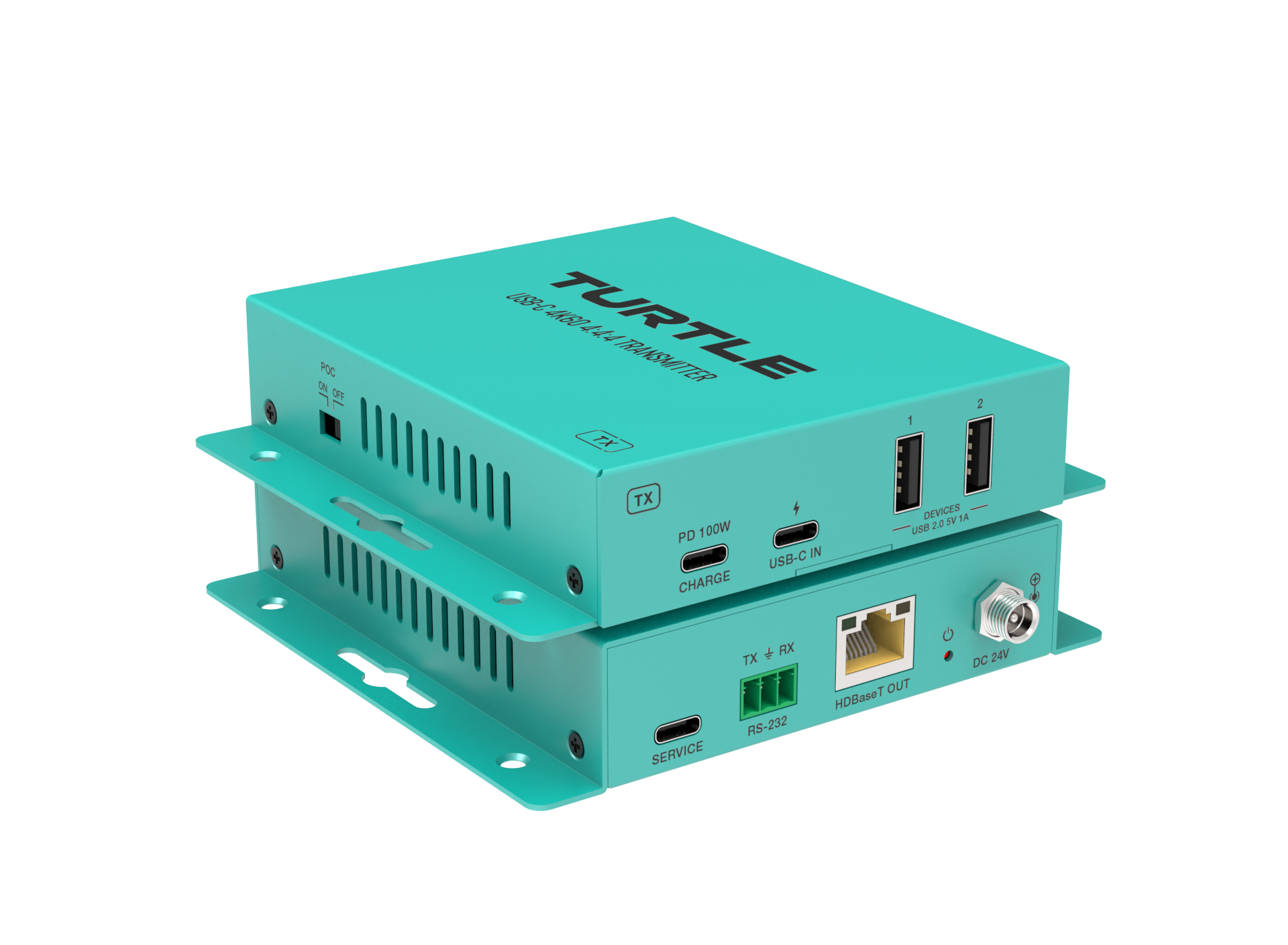

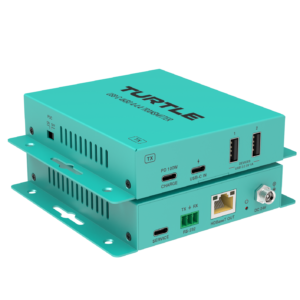

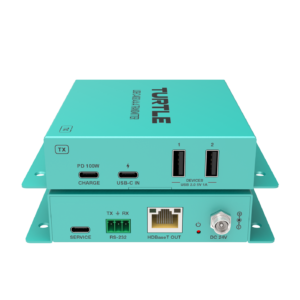

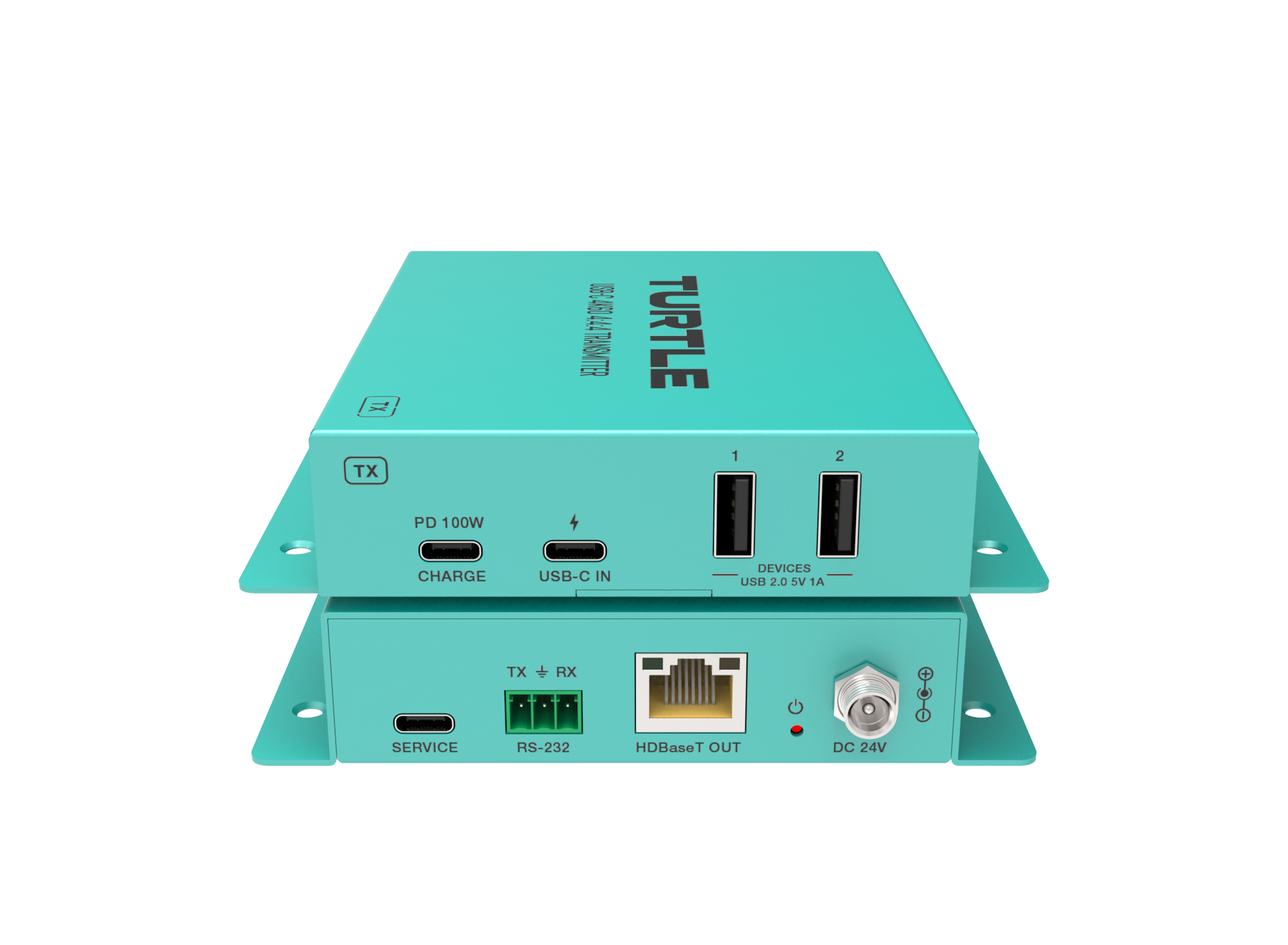

Transmitter

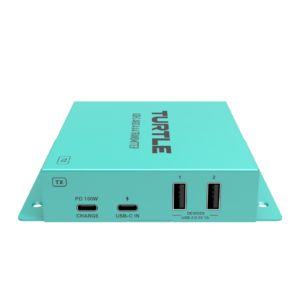

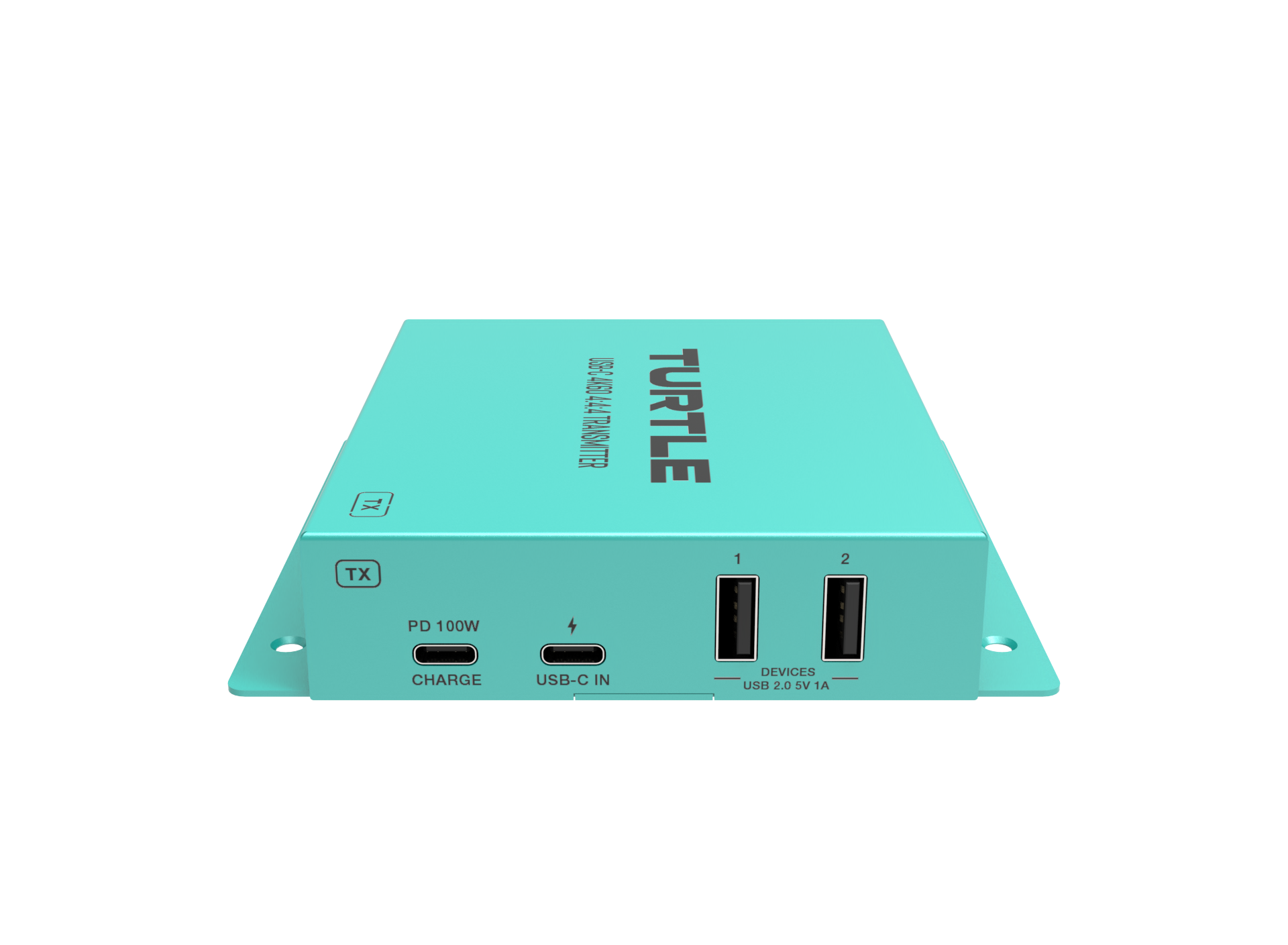

Front Panel

1x CHARGE [USB Type C, 24-pin female]

1x USB-C IN [USB Type C, 24-pin female]

2x USB 2.0 DEVICES [USB Type A, 4-pin female]

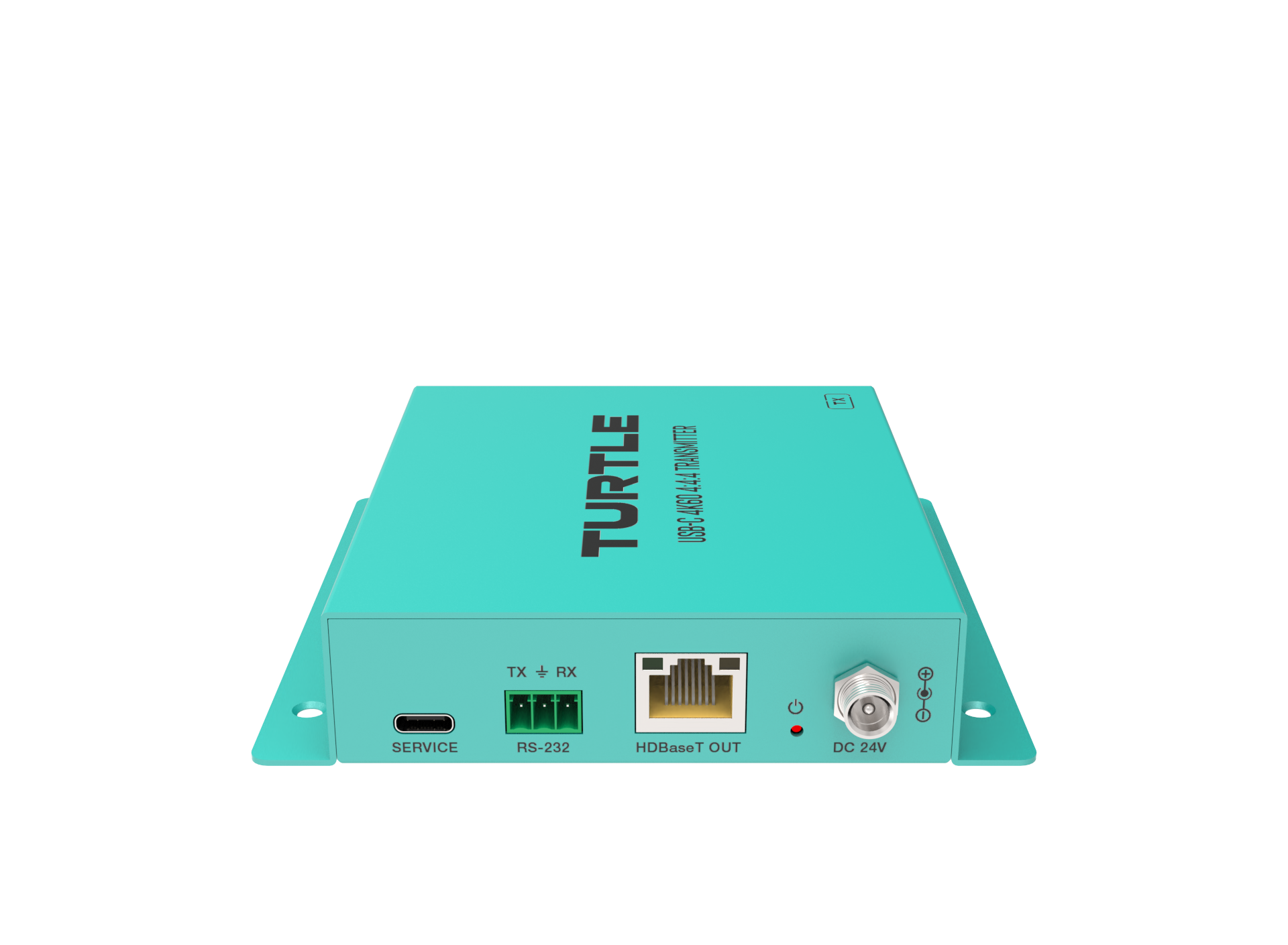

Rear Panel

1x SERVICE [USB-C with USB 2.0 only, 12-pin

female, firmware upgrade port]

1x RS-232 [3-pin phoenix with 3.5mm pitch]

1x HDBaseT OUT [RJ45 connector, 24V PoC]

1x Power LED [Red LED, Power indicator]

1x DC 24V [24V/2.7A, 19mm locking connector]

Side Panel

1x PoC ON/OFF [1-pin DIP switch, 24V PoC ON/

OFF selection]

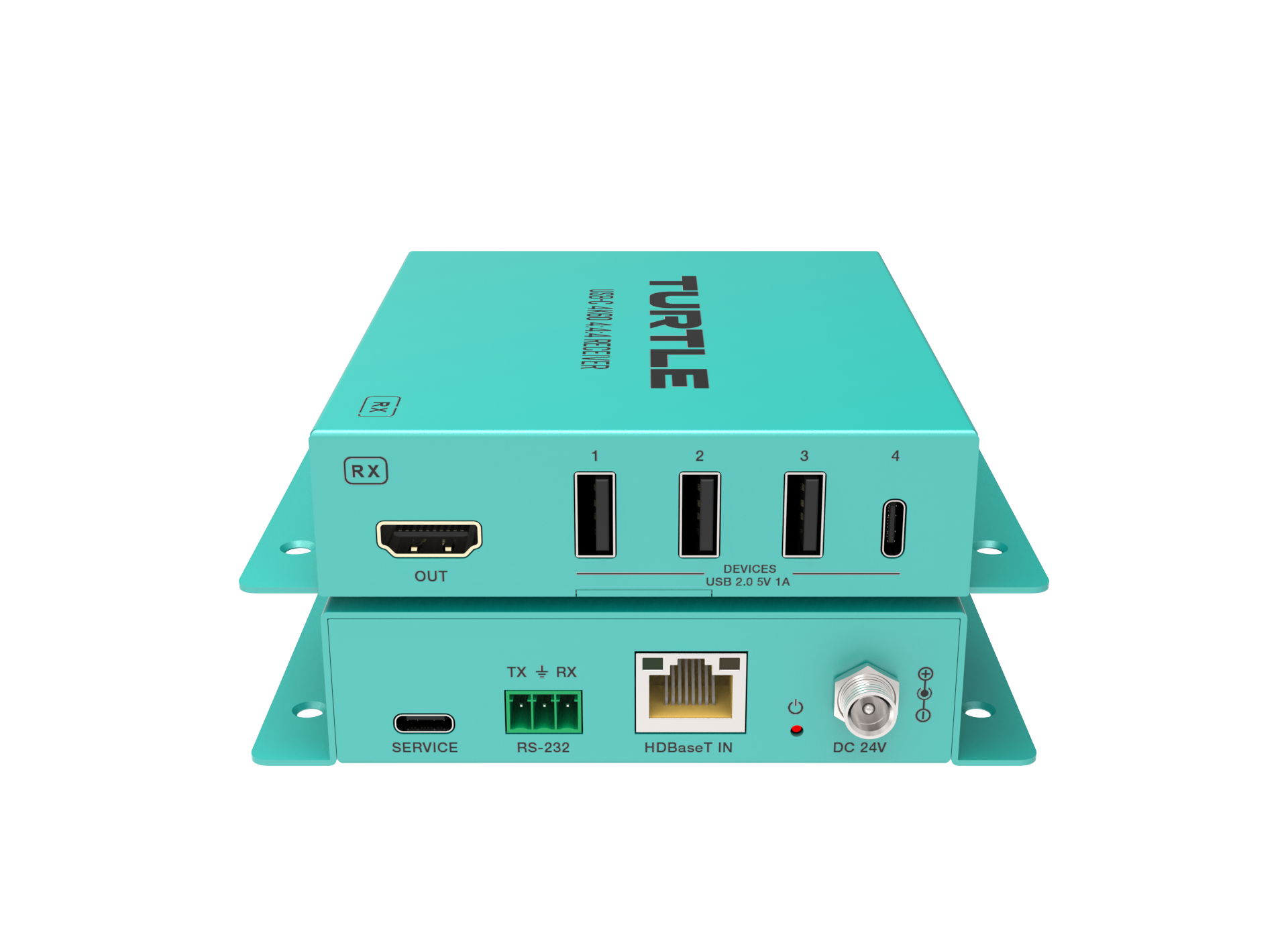

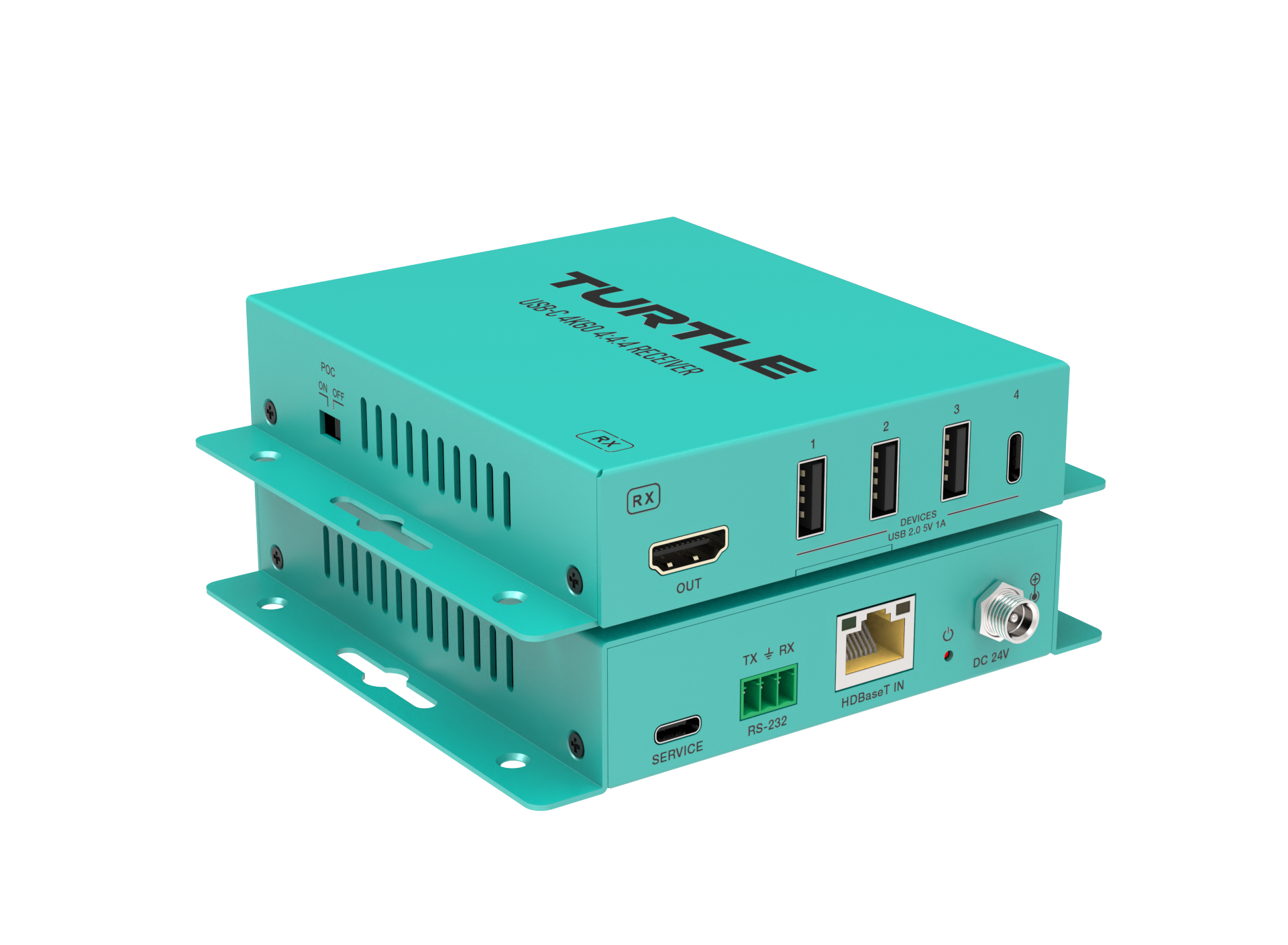

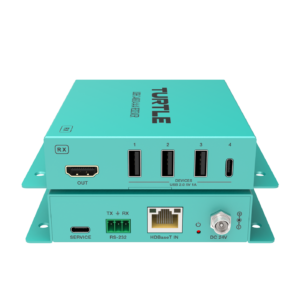

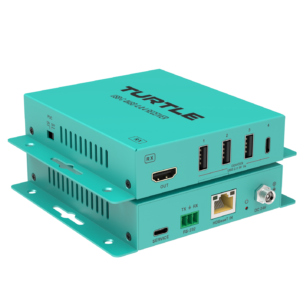

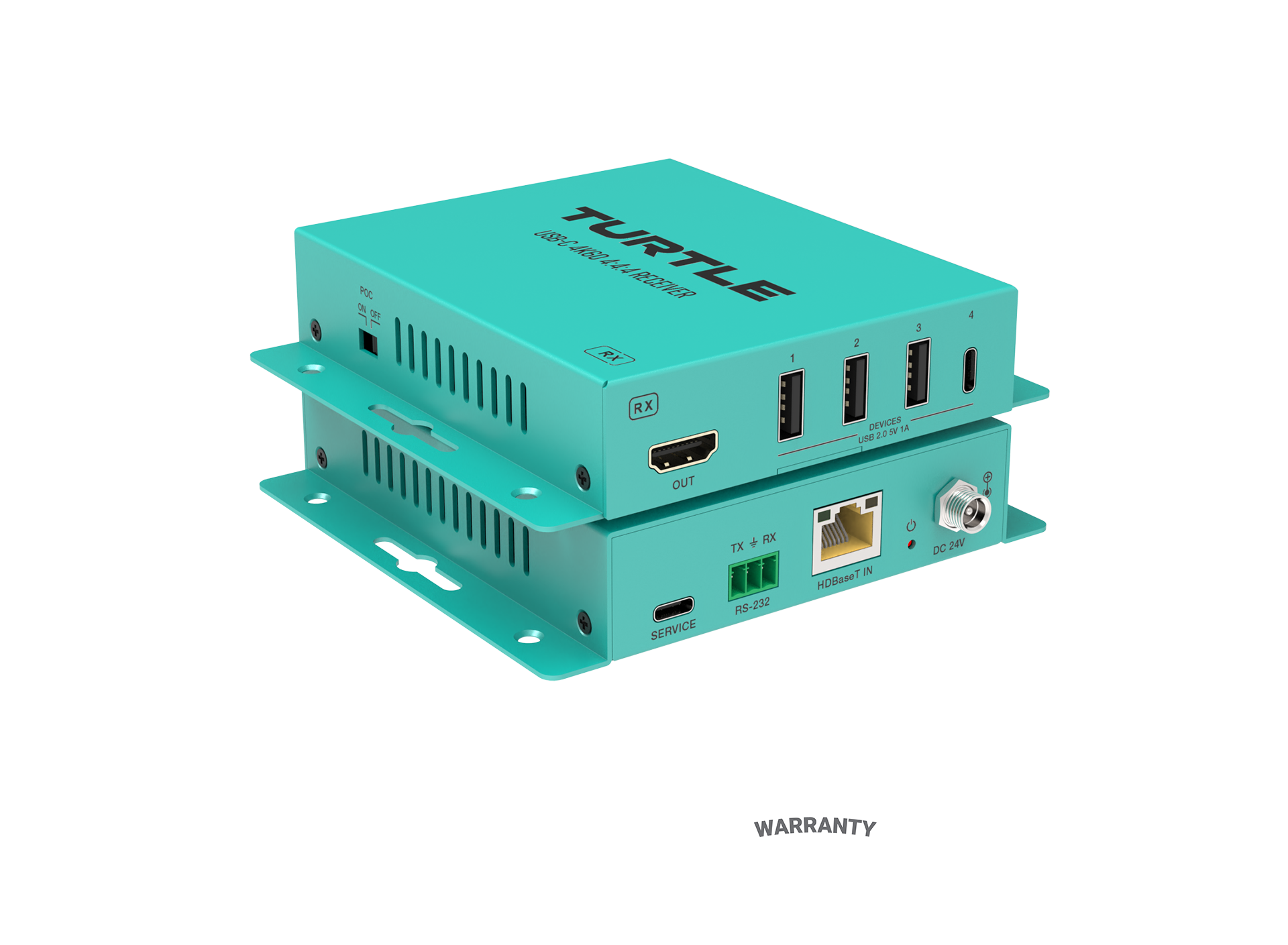

Receiver

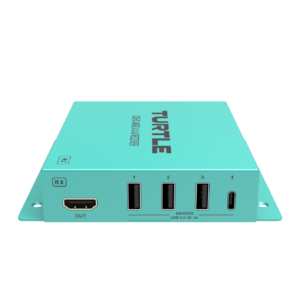

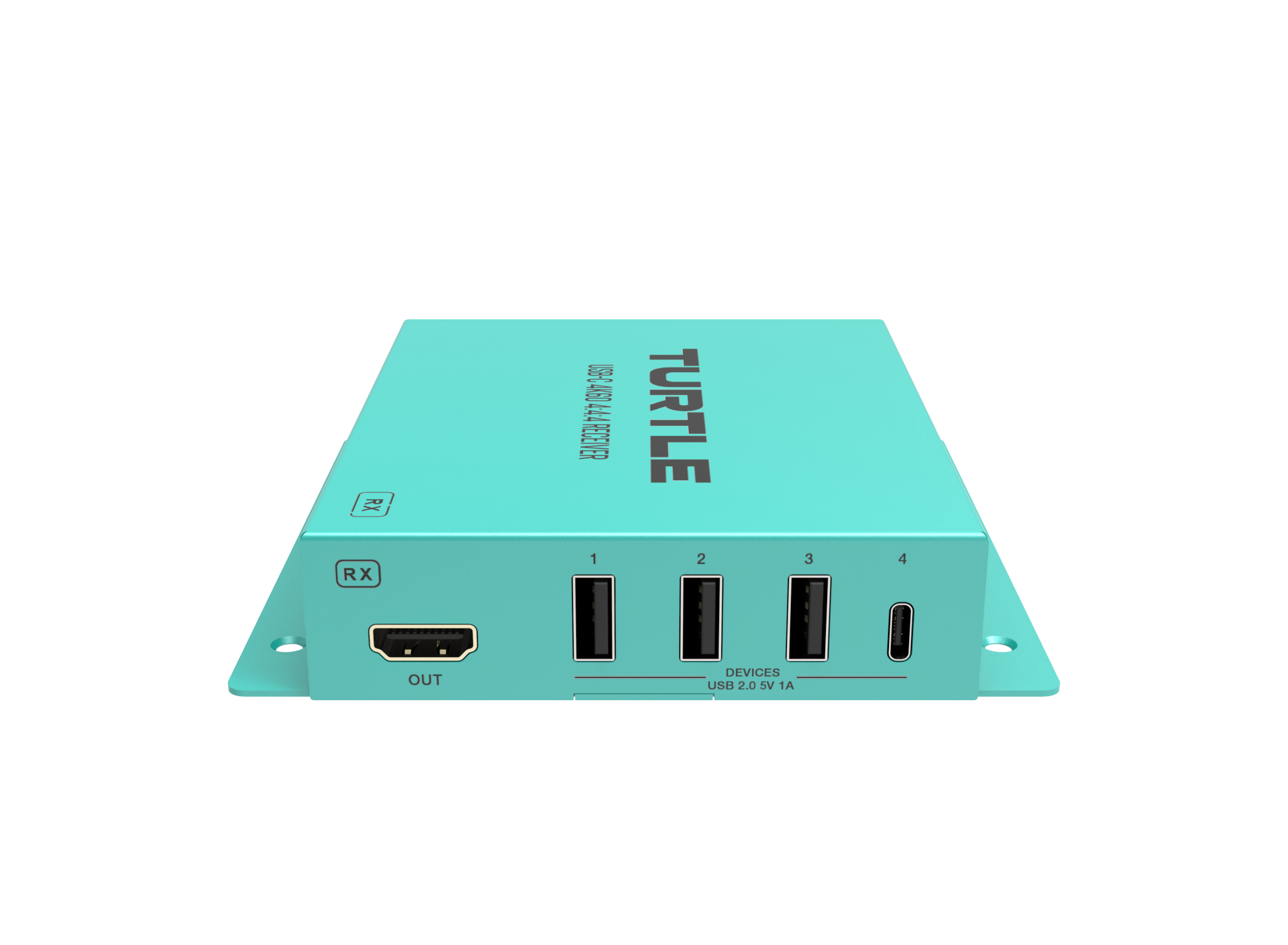

Front Panel

1x HDMI OUT [HDMI Type A, 19-pin female]

1x USB 2.0 DEVICES [USB Type C, 12-pin female]

3x USB 2.0 DEVICES [USB Type A, 4-pin female]

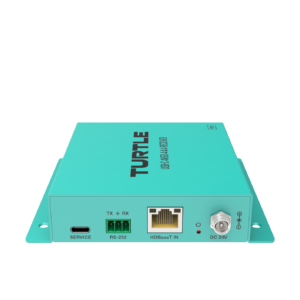

Rear Panel

1x SERVICE [USB-C with USB 2.0 only, 12-pin

female, firmware upgrade port]

1x RS-232 [3-pin phoenix with 3.5mm pitch]

1x HDBaseT IN [RJ45 connector, 24V PoC]

1x Power LED [Red LED, Power indicator]

1x DC 24V [24V/2.7A, 19mm locking connector]

Side Panel

1x PoC ON/OFF [1-pin DIP switch, 24V PoC ON/

OFF selection]

Mechanical

Housing

Metal

Color

Turtle Aqua

Dimensions

Transmitter/Receiver: 120mm [W] x 113mm [D] x 25.5mm [H]

Weight

Transmitter: 353g, Receiver: 352g

Power Supply Input

AC 100 – 240V 50/60Hz

Output

DC 24V/2.7A (US/EU standard, CE/FCC/UL certified)

Power Consumption

TX/RX with full USB devices: 51.36W

TX/RX without USB devices: 10.08W

Operating Temperature

32°F – 104°F / 0°C – 40°C

Storage Temperature

-4°F – 140°F / -20°C – 60°C

Operating Humidity

20% – 80% relative humidity, non-condensing

Storage Humidity

10% – 90% relative humidity, non-condensing
